Knife Help
Shortcut: {{knife tool}}
Quick Shortcut: {{knife quick}}

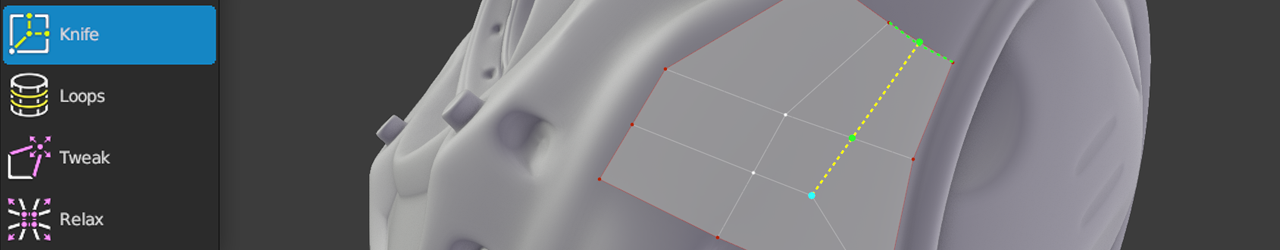

The Knife tool allows you to cut into the existing geometry similarly to Blender's Knife tool.
Note: the Knife tool will only cut into existing geometry; it will not create new vertices, edges, or faces.
If nothing is selected, the first insert will
- insert a new detached vertex if the mouse is hovering a face,
- split the hovered edge,
- select the hovered vertex, or
- set a knife starting point (does not create a new vertex).
The subsequent insertions will cut in new edges, splitting faces and edges accordingly.
Note: an existing face will not be split until there are distinct entrance and exit vertices. Until the face can split, the created vertices and edges will be non-manifold (possibly detached) geometry.
Creating
| {{insert}} | : | insert geometry connected to selected geometry |
| {{knife reset}} | : | resets the knife starting point |
Selecting
| {{select single, select single add}} | : | select geometry |
| {{select paint, select paint add}} | : | paint geometry selection |
| {{select path add}} | : | select along shortest path |
| {{select all}} | : | select / deselect all |
| {{deselect all}} | : | deselect all |
Transforming
| {{grab}} | : | grab and move selected geometry |
| {{action}} | : | grab and move selected geometry under mouse |
| {{smooth edge flow}} | : | smooths edge flow of selected geometry |
Other
| {{delete}} | : | delete/dissolve/collapse selected |
| {{rip}} | : | rip selected edge |
| {{rip fill}} | : | rip and fill selected edge |
