Tweak Help
Shortcut: {{ site.data.keymaps.tweak_tool }}
Quick Shortcut: {{ site.data.keymaps.tweak_quick }}

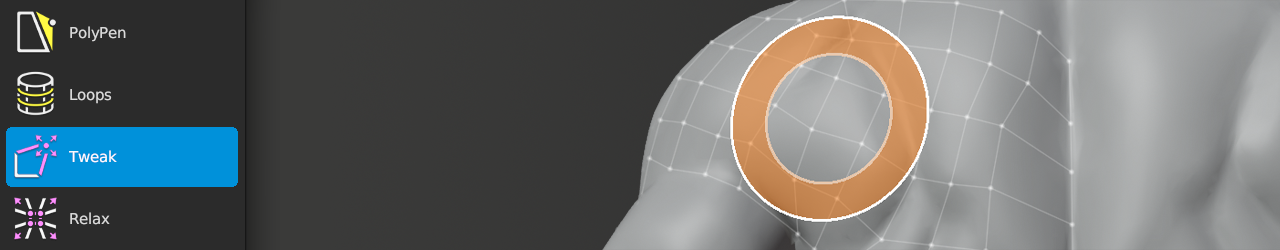

The Tweak tool allows you to easily adjust vertex positions with a brush.
Transforming
| :--- | :--- | :--- | | {{ site.data.keymaps.brush }} | : | tweak all vertices within brush | | {{ site.data.keymaps.brush_alt }} | : | tweak only selected vertices within brush |
Changing Brush Options
| :--- | :--- | :--- | | {{ site.data.keymaps.brush_radius }} | : | adjust brush size | | {{ site.data.keymaps.brush_strength }} | : | adjust brush strength | | {{ site.data.keymaps.brush_falloff }} | : | adjust brush falloff |
These options can also be stored as presets in the Brush Options panel.
To quickly switch between presets, use the {{ site.data.keymaps.pie_menu_alt0 }} pie menu.
Masking
Tweak has several options to control which vertices are or are not moved. Each option is below, along with setting and description.
Boundary
| :--- | :--- | :--- | | Exclude | : | Tweak vertices not along boundary | | Slide | : | Tweak vertices along boundary, but move them by sliding along boundary | | Include | : | Tweak all vertices within brush, regardless of being along boundary |
Symmetry
| :--- | :--- | :--- | | Exclude | : | Tweak vertices not along symmetry plane | | Slide | : | Tweak vertices along symmetry plane, but move them by sliding along symmetry plane | | Include | : | Tweak all vertices within brush, regardless of being along symmetry plane |
Hidden
| :--- | :--- | :--- | | Exclude | : | Tweak only visible vertices | | Include | : | Tweak all vertices within brush, regardless of visibility |
Selected
| :--- | :--- | :--- | | Exclude | : | Tweak only unselected vertices | | Only | : | Tweak only selected vertices | | All | : | Tweak all vertices within brush, regardless of selection |
