Knife Help
Shortcut: {{ site.data.keymaps.knife_tool }}
Quick Shortcut: {{ site.data.keymaps.knife_quick }}

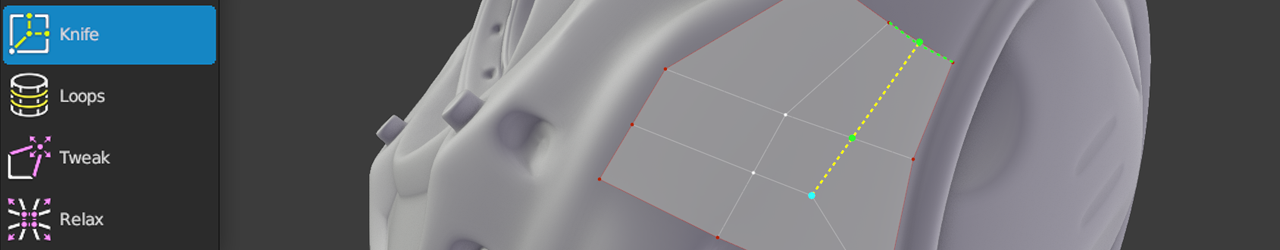

The Knife tool allows you to cut into the existing geometry similarly to Blender's Knife tool.
Note: the Knife tool will only cut into existing geometry; it will not create new vertices, edges, or faces.
If nothing is selected, the first insert will
- insert a new detached vertex if the mouse is hovering a face,
- split the hovered edge,
- select the hovered vertex, or
- set a knife starting point (does not create a new vertex).
The subsequent insertions will cut in new edges, splitting faces and edges accordingly.
Note: an existing face will not be split until there are distinct entrance and exit vertices. Until the face can split, the created vertices and edges will be non-manifold (possibly detached) geometry.
Creating
| :--- | :--- | :--- | | {{ site.data.keymaps.insert }} | : | insert geometry connected to selected geometry | | {{ site.data.keymaps.knife_reset }} | : | resets the knife starting point |
Selecting
| :--- | :--- | :--- | | {{ site.data.keymaps.select_single }}, {{ site.data.keymaps.select_single_add }} | : | select geometry | | {{ site.data.keymaps.select_paint }}, {{ site.data.keymaps.select_paint_add }} | : | paint geometry selection | | {{ site.data.keymaps.select_path_add }} | : | select along shortest path | | {{ site.data.keymaps.select_all }} | : | select / deselect all | | {{ site.data.keymaps.deselect_all }} | : | deselect all |
Transforming
| :--- | :--- | :--- | | {{ site.data.keymaps.grab }} | : | grab and move selected geometry | | {{ site.data.keymaps.action }} | : | grab and move selected geometry under mouse | | {{ site.data.keymaps.smooth_edge_flow }} | : | smooths edge flow of selected geometry |
Other
| :--- | :--- | :--- | | {{ site.data.keymaps.delete }} | : | delete/dissolve/collapse selected | | {{ site.data.keymaps.rip }} | : | rip selected edge | | {{ site.data.keymaps.rip_fill }} | : | rip and fill selected edge |
